The Rebel

(1 customer review)

$5,899.99

1000 Watts

1000 Watts

Power

Sand

Sand

Traction

48 Miles

48 Miles

Battery Range

11 Speeds

11 Speeds

Speeds / Gears

Moderate

Moderate

Grass / Bush

Clear

Description

BUILT RAMBO TOUGH

BUILT RAMBO TOUGH

The Rambo Rebel 1000W Xtreme Performance electric fat tire bike is for the Extreme Rider that will only settle for the best. Big game hunting the backwoods in steep grade conditions, trail riding in rough terrain, or cruising down the beach the 1000 XPC has the job covered with high end GT Air suspension, a 1000W extreme performance motor, and all the high-end bike components to match. No costs were spared to build the most extreme off-road fat bike. The frame is TrueTimber Viper Western Camo for both concealment and looks. The Rambo Rebel 1000W True Timber Viper Western Camo Xtreme Performance features a custom-built frame to encase and heighten the motor for increased ground clearance and protection. The Rambo Rebel 1000W TrueTimber Viper Western Camo Xtreme Performance electric fat tire bike won’t disappoint!

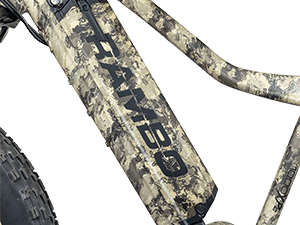

OUR BATTERY

OUR BATTERY

Rambo’s frame integrated batteries allow the battery sit lower on the bike frame than a standard battery. By placing it lower on the frame it helps keep the weight lower and gives the bike a faster, more responsive ride. Our integrated battery packs use the very best lithium ion batteries produced by Panasonic and Samsung, both leaders in the lithium ion market. Our integrated batteries are designed to be universal and allow you to upgrade to a whopping 21-amp hour battery! The 21-amp hour battery can give you a max distance of 48 miles! Not all batteries are equal. In fact, not even close. Many e-bikes that are advertised on the market today at a certain amp hour fall very short. Real life tests show Rambo outperforms again and again! Don’t be fooled for less the than best!

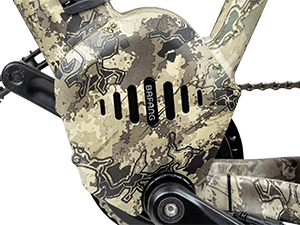

ULTRA 1000W MOTOR

ULTRA 1000W MOTOR

Rambo chose to use Bafangs BBSHD powerful mid-drive motor. The BBSHD is the big brother to the BBS02. The BBSHD has a nominal power rating of 1000W and a peak power rating of 1500W. The BBSHD has a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, Giving the rider great explosive force when taking off. Highly strong and efficient, this motor greatly enhances riding joy and the “Rambo Smile” This motor is suitable for riding on terrain such as mountains, sand and for those adrenaline seeking riders who love power.

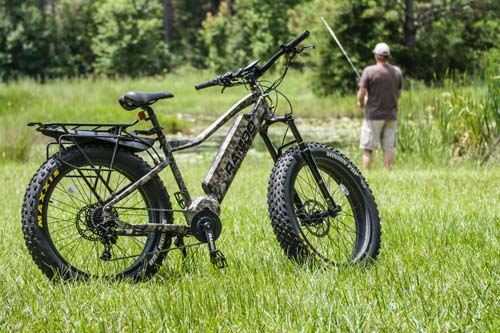

Rambo Rebel 1000 XPC Camo Lifestlye 1
Rambo Rebel 1000 XPC Camo LS 4
Rambo Rebel 1000 XPC Camo Lifestyle 2

Technical

SPECIFICATIONS

SPECIFICATIONS

  • MODEL #: 1000 XPC Camo
  • WEIGHT: 69 lbs.
  • FRAME: Aluminum Alloy 6061
  • PAINT: TrueTimber Viper Western Camo / Urban
  • MOTOR: Bafang 1,000W BBSHD High Torque Mid Drive
  • DIGITAL DISPLAY: DP C10.UART
  • BATTERY: Samsung 48V 21AH
  • FORK: GT 860 Air Suspension
  • DERAILLEUR: SRAM NX 1X11
  • REAR CASSETTE: SRAM NX PG-1130 11-42T
  • FRONT HUB: KT-M9CF 150mm sealed
  • REAR HUB: KT-M9VF Sealed 197mm sealed
  • THROTTLE: Thumb throttle
  • FRONT BRAKE: Tektro HD-E725 4 Piston Hydraulic 203mm
  • REAR BRAKE: Tektro HD-E725 4 Piston Hydraulic 180mm
  • CHAIN RING: Rambo custom built 36T Narrow Wide
  • TIRE: Maxxis Minion FBF, FBR 26″ x 4.8″
  • RIM: Double Wall W/O holes 100mm wide
  • PEDAL: Wellgo B807DU
  • SADDLE: Selle Royal A027HEO
  • HANDLEBAR: PROMAX 770mm
  • STEM: PROMAX MA-50
  • GRIP: SRAM XX1 100mm / 122mm Lock On
  • MAX SPEED: 28 mph
  • RANGE: Up to 48 miles
  • STAND OVER HEIGHT: 31″
  • FRAME SIZE: 19″
  • WEIGHT CAPACITY: 300 Lbs.

KEY FEATURES

KEY FEATURES

LCD: Trip Distance, battery level, power, and speed.

LCD: Trip Distance, battery level, power, and speed.

11 Speed

11 Speed

Tektro HD-E725 4 Piston Hydraulic 203mm

Tektro HD-E725 4 Piston Hydraulic 203mm

Saddle: Selle Royal A027HEO

Saddle: Selle Royal A027HEO

Left handle bar controls for electric motor.

Left handle bar controls for electric motor.

Right handle bar for pedal gears with thumb throttle for electric motor.

Right handle bar for pedal gears with thumb throttle for electric motor.

Tektro HD-E725 4 Piston Hydraulic 180mm

Tektro HD-E725 4 Piston Hydraulic 180mm

Maxxis Minion FBF, FBR 26″ x 4.8″

Maxxis Minion FBF, FBR 26″ x 4.8″

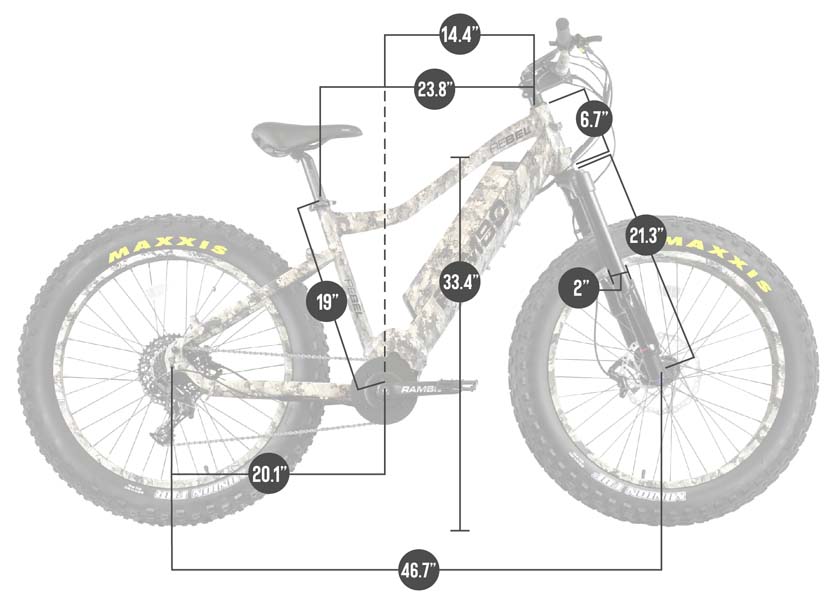

SIZING

SIZING

SIZING

Additional information

Weight 90 lbs
Dimensions 66 × 12 × 34 in
Colour

Urban Camo, Western Camo

1 review for The Rebel

  1. Peter Palmer

    I bought this bike for moose hunting in September of 2020. I have already put over 250 miles on the bike. ie) Gravel roads, timber trails, clear cuts, bike paths. I also used it for a deer hunt in open and tilled fields. When I am not hunting, I also ride it around the country side. This bike is a real beast and it take a little bit of time to get used to combining the right gear selections with the best power settings, especially if you are going to climb a steep hill. There battery lasts longer than I had imagined, I generally only use 1 battery for a full day of hunting. ( trail and road combined ) It gives you incredible speed on the way back from a day in the field. I rarely go above 4th power setting. I generally pedal and cruise at number 2 to 3 power settings for the most economical battery usage. The bike needs a full front and back fender as I have been completely covered in mud and debris on rainy days. ( I bought both the small front and back plastic snap on mud guards but they can’t do the job ) The big tires are great and create incredible stability and allow you to go anywhere you would like. Make sure you break in the hydraulic breaks in properly ( as indicated ) either wise you will get some very noisy squealing when they are cold or wet and especially when you dont want the noise. If you can afford it, buy 2 batteries. You can always be ready to swap out a low battery when required. It takes about 4 hours to charge the batteries. I also suggest that you buy the dual saddle bags. Incredible the amount of stuff you can put in them for a full day out hunting. ( Even an extra battery if required ) This bike is really robust and the quality shows through. Everyone stops me and asks me about it. It does the job but heck, yes, sure the Rebel is pricey but the USD exchange does this to all us Canadians. Would I buy another one..You bet, in a flash…What a cool bike
